Driver 15W for Ara 5

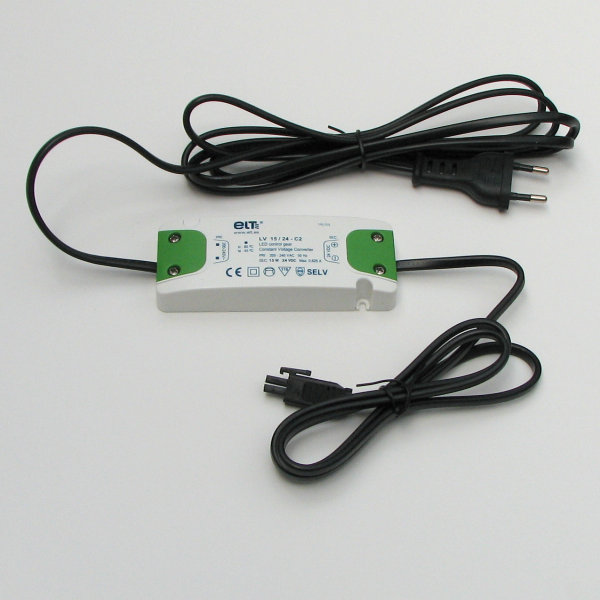

15 watt LED control gear. Can power up to 4 units of Ara 5. Supplied assembled: ETL driver LV 15/24 – C2 with power supply cord (2 m) and wire Harnes Male.
Main features:

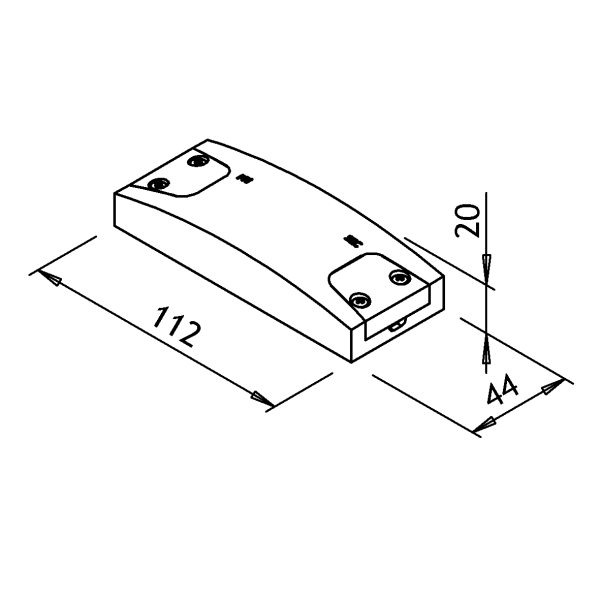

| Size | 112 x 44 x 20 mm |
| Supply voltage | 200-240 VAC 50 Hz |
| Driver type | Electronic |
| Driver life | >50.000 h |
| Total power | 15 W |
| Protection rating | IP 20 |
| Weight | 200 g |
15 watt LED control gear. Can power up to 4 units of Ara 5. Supplied assembled: ETL driver LV 15/24 – C2 with power supply cord (2 m) and wire Harnes Male.
| Weight | 200 kg |
|---|---|
| Cable Type | 5 – 1, 5 mm² |
| Cleaning | Dry cloth only |
| Data Connection | None |
| Dimmable | No |
| Driver Life | 000 h, 50 |
| Driver Mode | Constant Voltage |
| Driver Type | Electronic |
| Min. Ambient Temperature | -20 °C |
| Operating Environment | Indoor / dry locations |
| Output Current | 24 V DC |
| Plug Type | Terminal block |
| Power Cord | Terminal block |
| Protection Rating | IP 20 |
| Size | 112 x 44 x 20 mm |
| Supply Voltage | 200-240 VAC 50 Hz |
| Temperature Measurement | At tc point: 80°C |
| Thermal Protection | No |
| Total Power | 15 W |
